Catch drawing errors before they become costly mistakes
Dim IQ checks your SOLIDWORKS drawings while you work
No Setup. No Configuration. Just install & you’re covered
Dim IQ comes pre-configured for use straight out-of-the-box. There are no complex rules to configure, no scripts to write, and no workflows to set up. Simply install the add-in and continue working as you normally would — Dim IQ runs silently in the background, checking your drawings.
Built for Engineers Who Demand Drawing Quality
Dim IQ is for engineers who take pride in clear, accurate drawings — and who understand that even small mistakes can have outsized consequences. Dim IQ provides an extra layer of confidence, freeing you up to focus on critical aspects of your design.
Checking your work… while you work
Drawing errors become costly mistakes when they’re discovered late. Dim IQ checks your drawings in real time, as you work, so issues can be addressed immediately — not during review, not after release, and not after parts have been delivered.
Try Dim IQ, restriction free, for 1 month, continue using it as long as you like
Dim IQ Has You Covered

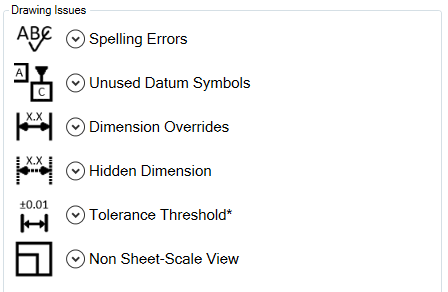

With nearly 20 built-in checks, Dim IQ will alert you of issues that SOLIDWORKS simply can’t.
Dim IQ monitors datum usage to identify skipped letters, missing references, & inconsistent datum schemes, empowering designers to create clear drawings that communicate design-intent and avoid confusion.
Dim IQ checks for common dimension-related issues such as dangling dimensions, hidden dimensions or overridden dimensions, helping ensure that all dimensions remain accurate and error free.
Dim IQ identifies overridden dimension text so potential mismatches between model geometry and displayed values don’t go unnoticed.
Dim IQ checks annotations for spelling errors in many languages, including checking text in tables, which SOLIDWORKS spell check ignores. Not only that, but Dim IQ’s spell check is always on alerting you immediately, with no need to remember to run it.
Dim IQ helps flag tolerance values that may be outside expected or practical ranges, prompting a second look before release. Use the built-int ISO 2768-1 tolerance table, or modify the allowable limits for different tolerance classes to suit your processes.
Dim IQ checks for drawing detail/section view letter sequence, hidden views and overridden view scales that can confusion, ambiguity or even costly manufacturing errors.
Dim IQ can automatically add inspection balloons to your drawings, saving vendors time and ensuring consistency of FAI reports. For many companies, SolidWorks Inspection is overkill, and suppliers often use their own FAI templates, inspecting parts is an ad-hoc process. Dim IQ addresses this simple but real need.

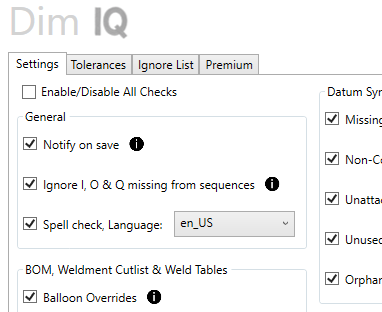

Dim IQ is ready to use out-of-the-box, but should you choose to customize settings, it allows quick and easy export and import of settings for consistent usage and implementation across all users.
Efficiency Meets Accuracy
Versa Note users, rejoice! Dim IQ is FREE for Versa Note Enterprise users! Make drawing errors a thing of the past. Pair Dim IQ with Versa Note for clear, error free documentation that captures design intent.
